Flemming Videbaek's Public page at BNL/RACF

Physics Presentations

These are mainly presentations not given as dedicated BRAHMS talks. Those can be found on brahms presentations page. STAR related information can be found on (Videbaek STAR RFC webpage and the STAR publication pages.

2009

Heavy Ion Physics with the ATLAS detector 3rd Nordic workshop on the physics at LHC and Beyound, February 2-3, 2009 Lund, Sweden.

2008

The STAR inner tracking upgradeRHIC/AGS users meeting 2008, BNL, June

2006

Forward rapidities at RHIC High Energy Physics in the LHC era, December 11-16, Valparaiso,Chile
Forward Physics at RHIC Gordon research Conference on Nucl. Chemistry, New London,New Hampshire June 2006
BRAHMS Role and results in the RHIC program Presentation at the celebration in honor of Tom Kirks Retirement, March 27, BNL

2005

Stopping and Particle Production 2. Workshop on onset of deconfinement, Bergen, March 2005.
Fixed target opportunities at RHIC 2. Workshop on onset of deconfinement, Bergen, March 2005.
Stopping and Baryon Transport February 2005, ICPAQGP 205, Kolkata

2004

Stopping and Baryon Transport Trento, May 2004

Publications

Contributions to ICPAQGP 2005 Stopping and Baryon Transport(pdf file)

Pythia Comparisons

Directory with plots from pythia (pdf files)

BasePlot and GraphUtils

These small utility packages are based on root, that makes creating the typical physics plots with nx*ny panels much easier to deal with. The figure, text sizes are dealt i.e specified with in cm, the code calculates internally how to set the proper intrinsic root values for offsetsetc. When adjoing panels the lables on the axises can be justified (left or top) such that the first label in case it is on the boundary is not clipped. No real documentation exists, but the README file and the examples in the test subdirectories should guide you along. The packages has been used by BRAHMS for several publications, conference proceedings and talks. The packages comes with the usual qualification, that it comes for use as is. The package has exclusively been developed on RCF linux system by Kris Hagel and myself; the latest gcc is 3.4.6.

One method is derived from the root source code (BanTGaxis) , and I refer to the license discussion on the root home page ( license). This was necessary to avoid the clipping aluded to in the first paragraph.

In addition to the BasePlot package, it contains a number of utility macros and methods, that are helpful in manipulating graphs and 1D-histograms. In particular the GraphFromFile that can select columns to be used in graphs from on multicolumn text file may be useful.

A tar file grutils_v5.4.tar (latest version 11.27.2010) containing code and macros in a tarfile is available. I will be happy for comments, corrections, and suggestions to this package. Contributions with appropriate makefile for MAC will be appreciated.

Version information

Version 5.4
Added alternate method for GraphFromFile. Updated README and comments.
Version 5.1
Updated comments to exmaples.
Version 5.0
Added possibility to create sub-pads with different relative size in x and y direction. See Example6.C how this can be used. The global features of being able to define text size, tick mark size in a gloabl format is preserved.

Example Plots

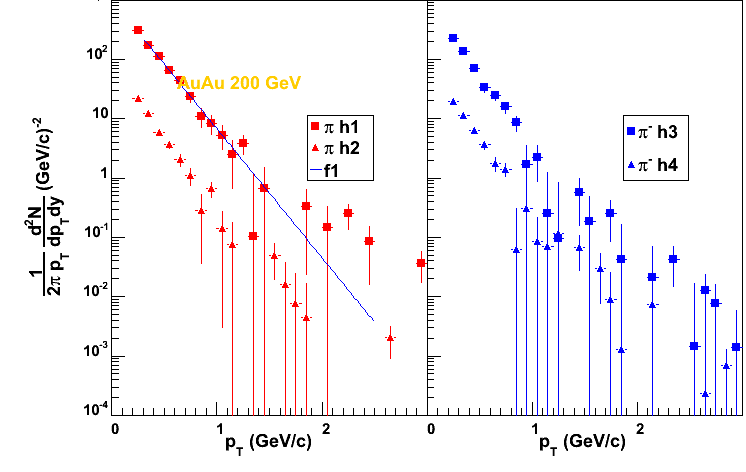

Example1 (figure) (macro) A two pad figure with two histograms each and a function. This code is commented for usage.

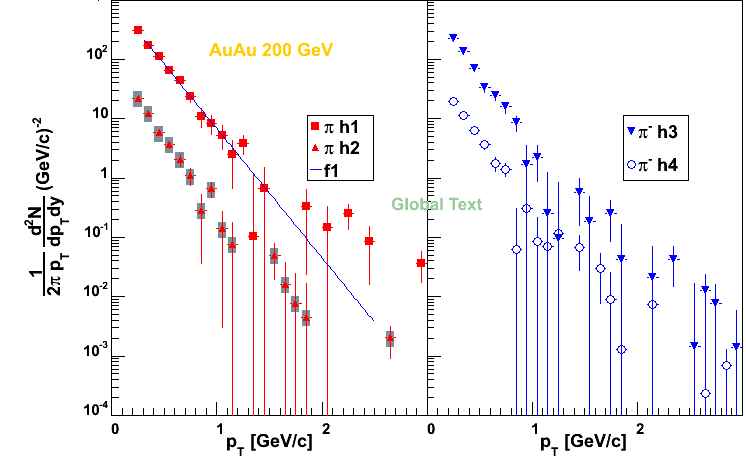

Example2 (figure) (macro) As Example1 but with an added global text.

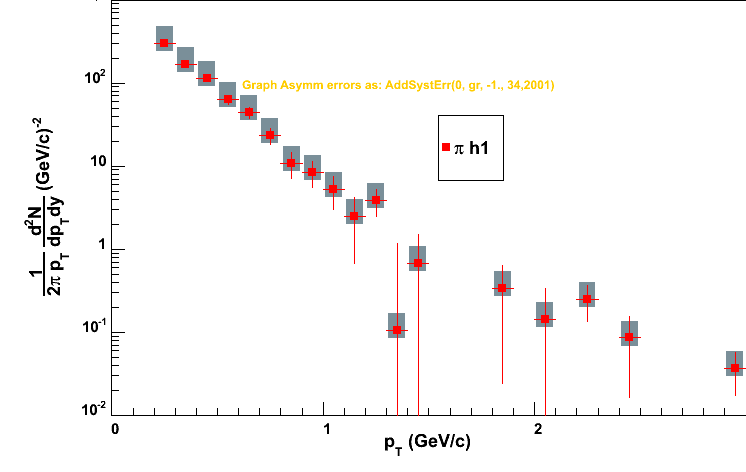

Example3 (figure) (macro) A one pane figure with a TGraphAsymmErros for systemetics.

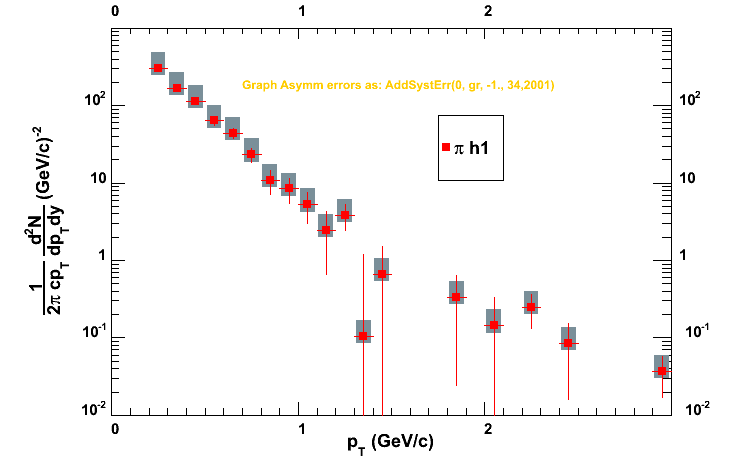

Example4 (figure) (macro) As 3 but with additional tick mars.

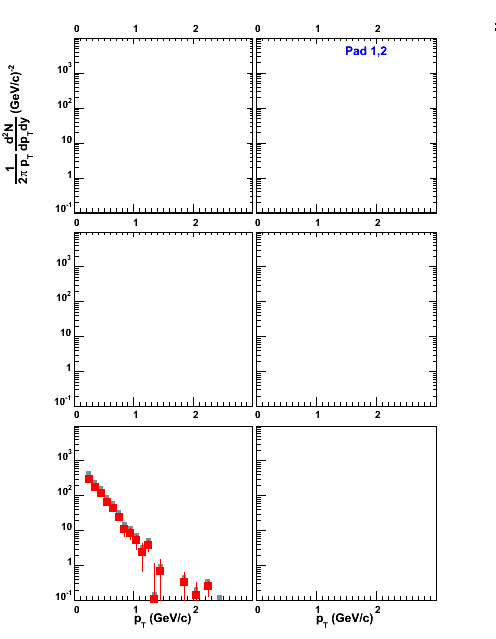

Example5 (figure) (macro) Illustration of different tic positions, as also available in root.

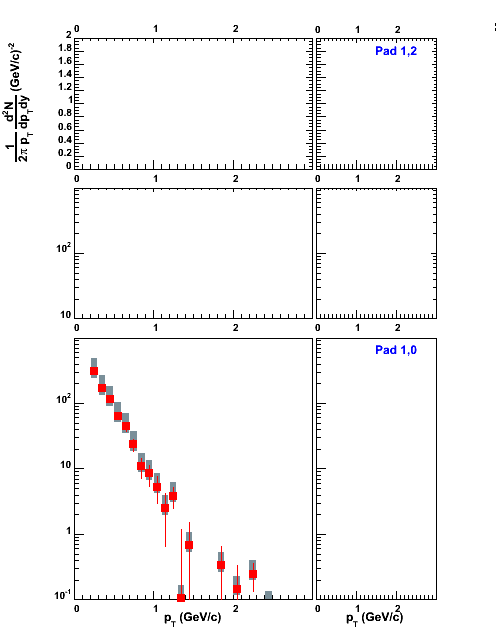

Example6 (figure) (macro) A multipanel figure with different size panel in x and y.
testGraphFromFile (macro) Macro reading coulom data from a text file defining columns associated with x, y, dy. Line with a leading # are treated a comment lines. It is possible to have columns not read by defining them a dummy e.g "x dummy y dy" as defining the layout.

Flemming Videbaek

Last modified: Sat Nov 27 15:02:24 EST 2010
