Reflection Current Studies with AGS CNI Chamber 6/12/02

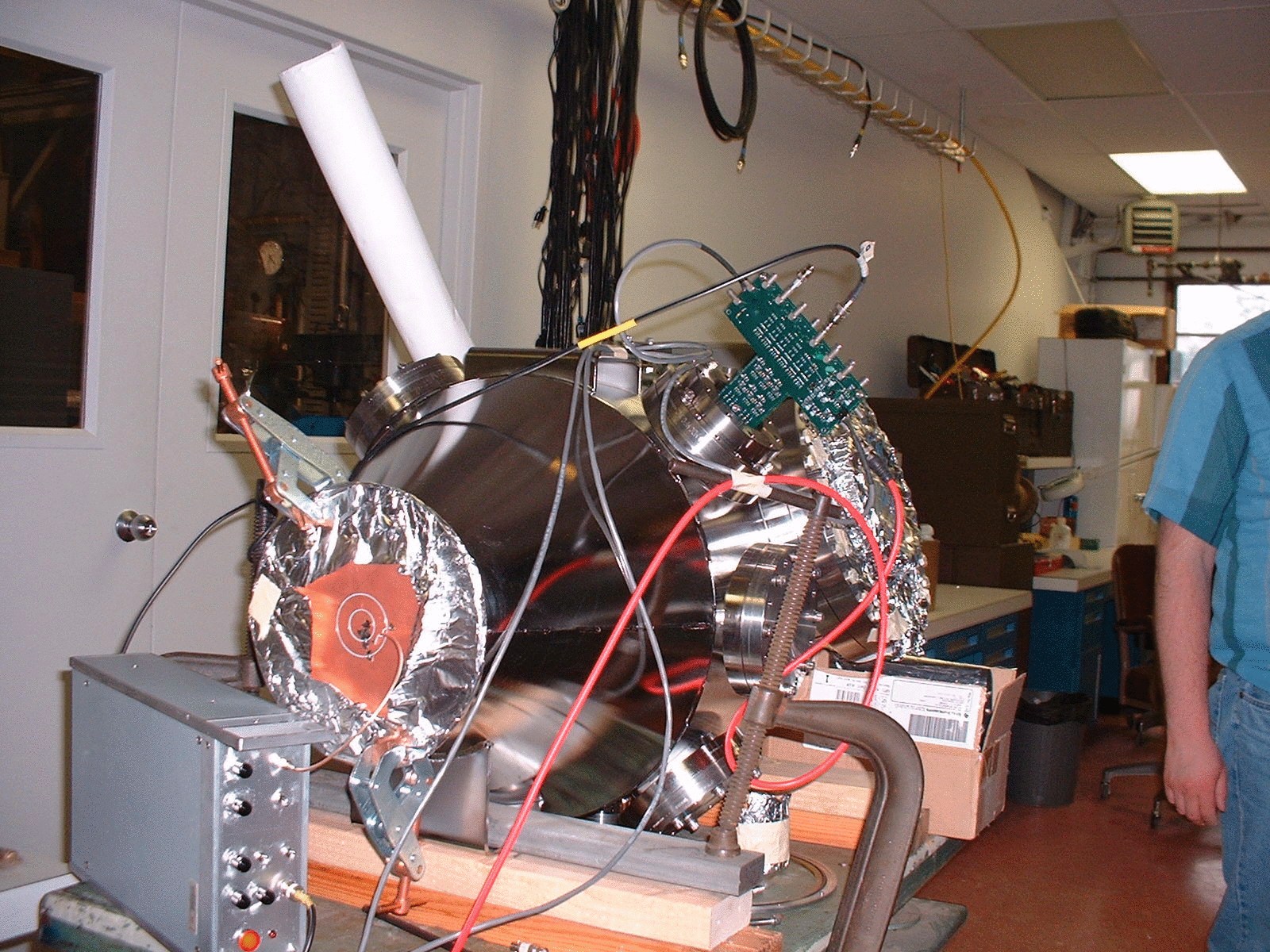

Figure 1. AGS chamber setup for bench test

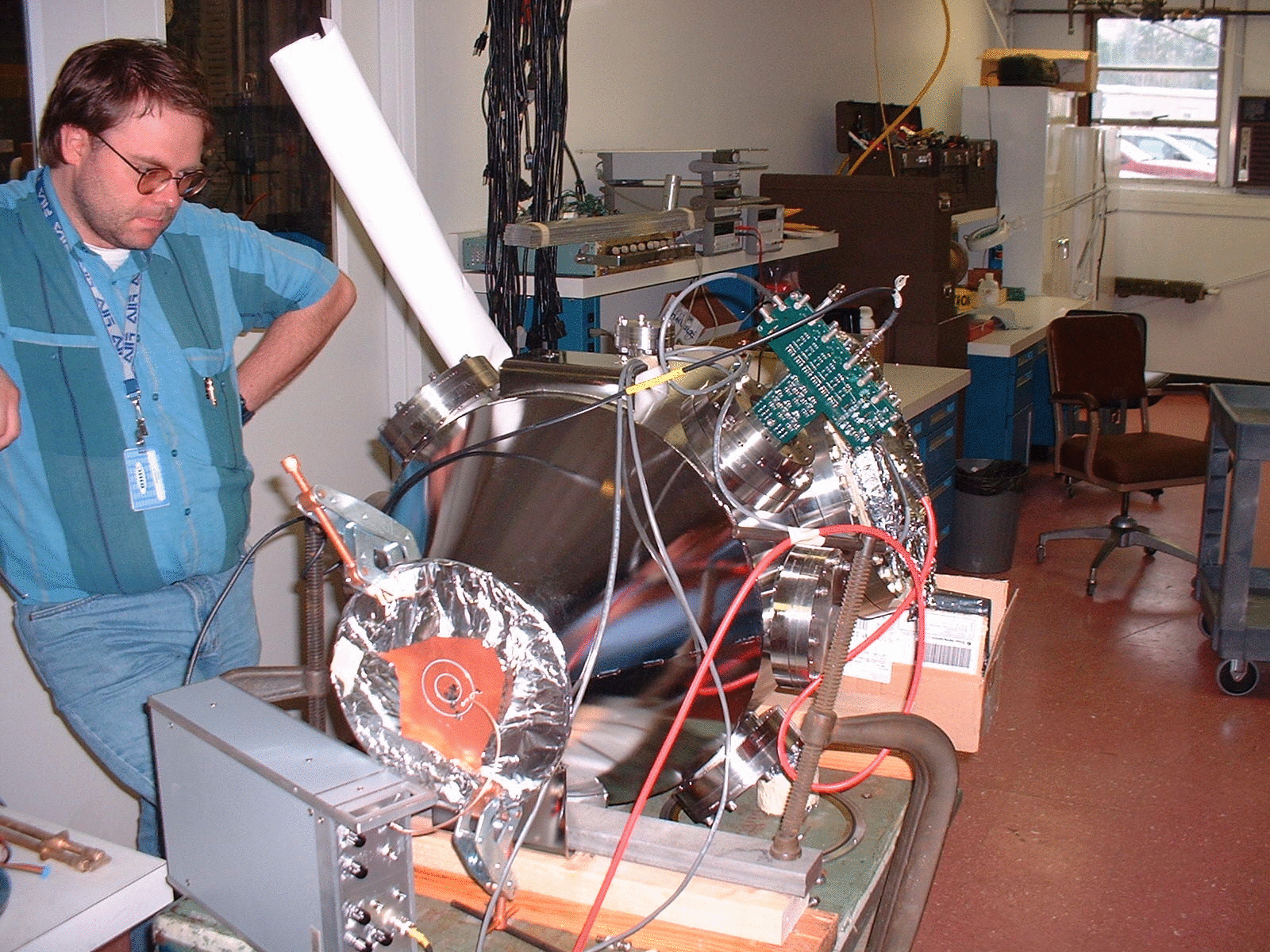

Figure 2. AGS chamber again

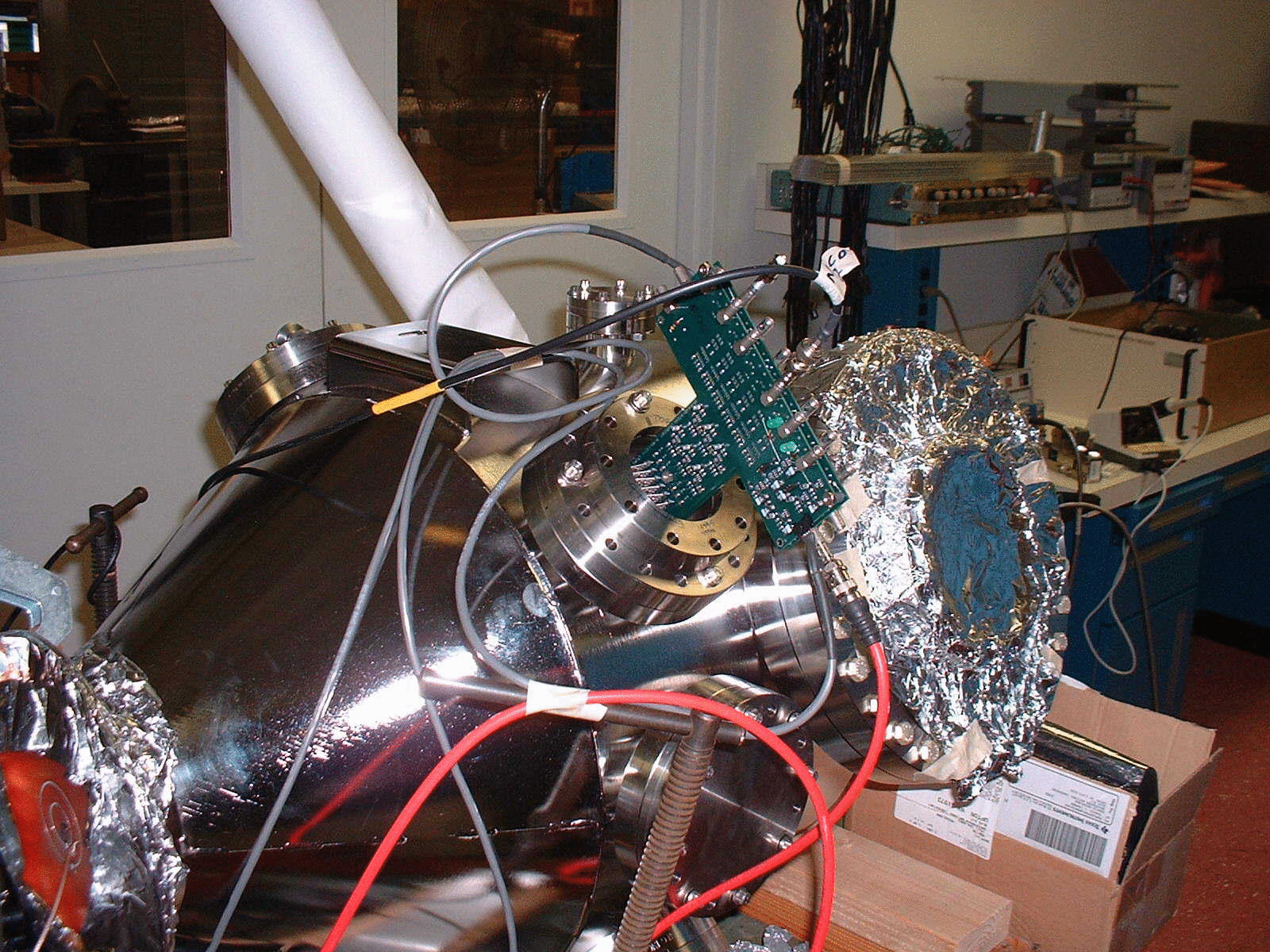

Figure 3. AGS chamber again

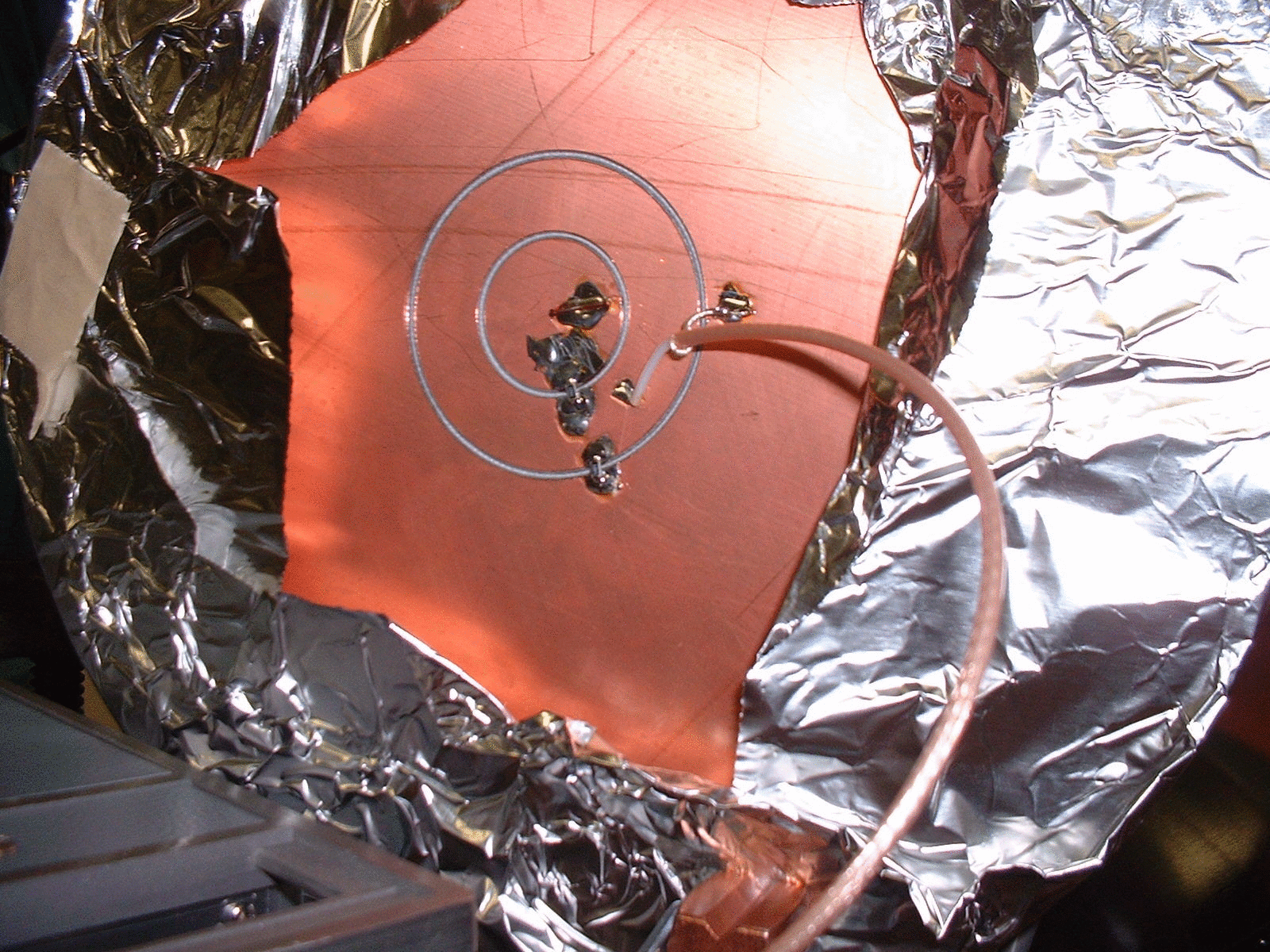

Figure 4. Wire connection for sending current pulse through chamber

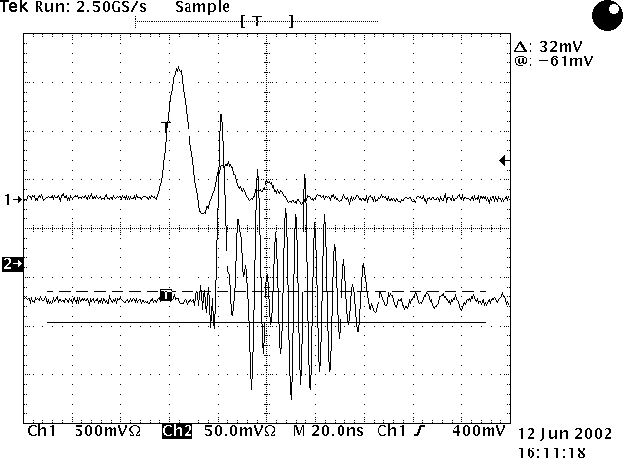

Figure 5. Current pulse signal sent through chamber (trace 1) and reflection signal induced on detector (trace 2) with Vbias = 100V

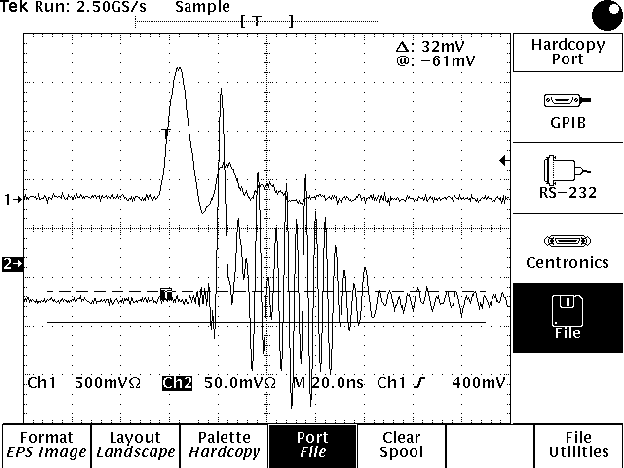

Figure 6. Pulse signal (trace 1) and reflection signal (trace 2) with bias voltage not connected - No Vbias dependence.
  There was no sheilding for the detector at this time. Further studies are planned with a mesh sheilding covering the detector.
