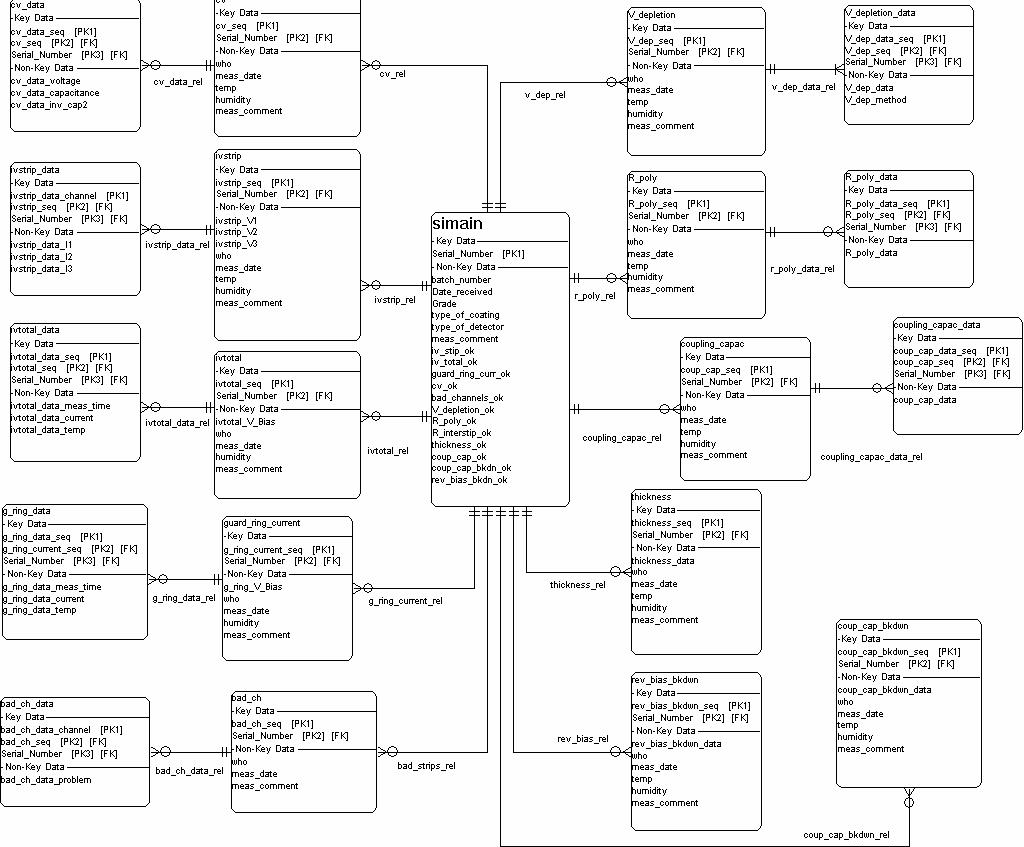

System Architect Diagram "sistrip"

&quotsistrip" (Entity Relation) diagram


Return to diagram index

Symbol Index for &quotsistrip" diagram

Index:

simain (Entity)

Description:
@1 Serial_Number+
batch_number+
Date_received+
Grade+
type_of_coating+
type_of_detector+
meas_comment+
iv_stip_ok+
iv_total_ok+
guard_ring_curr_ok+
cv_ok+
bad_channels_ok+
V_depletion_ok+
R_poly_ok+
R_interstip_ok+
thickness_ok+
coup_cap_ok+
coup_cap_bkdn_ok+
rev_bias_bkdn_ok

Normalize: T
Definitions Used:
Serial_Number (Data Element)
Date_received (Data Element)
Grade (Data Element)
iv_stip_ok (Data Element)
iv_total_ok (Data Element)
cv_ok (Data Element)
V_depletion_ok (Data Element)
R_poly_ok (Data Element)
R_interstip_ok (Data Element)
type_of_coating (Data Element)
type_of_detector (Data Element)
guard_ring_curr_ok (Data Element)
bad_channels_ok (Data Element)
thickness_ok (Data Element)
coup_cap_ok (Data Element)
coup_cap_bkdn_ok (Data Element)
rev_bias_bkdn_ok (Data Element)
batch_number (Data Element)
meas_comment (Data Element)


Return to diagram

ivstrip (Entity)

Description:
@1 ivstrip_seq+
ivstrip_V1
ivstrip_V2
ivstrip_V3
who
meas_date
temp
humidity
meas_comment
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(ivstrip_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
ivstrip_seq (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
meas_comment (Data Element)
ivstrip_V1 (Data Element)
ivstrip_V2 (Data Element)
ivstrip_V3 (Data Element)


Return to diagram

coup_cap_bkdwn (Entity)

Description:
@1 coup_cap_bkdwn_seq+
coup_cap_bkdwn_data+
who+
meas_date+
temp+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(coup_cap_bkdwn_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
coup_cap_bkdwn_seq (Data Element)
coup_cap_bkdwn_data (Data Element)
meas_comment (Data Element)


Return to diagram

ivtotal (Entity)

Description:
@1 ivtotal_seq+
ivtotal_V_Bias
who
meas_date
humidity
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(ivtotal_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
ivtotal_seq (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
ivtotal_V_Bias (Data Element)
meas_comment (Data Element)


Return to diagram

thickness (Entity)

Description:
@1 thickness_seq+
thickness_data+
who+
meas_date+
temp+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(thickness_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
thickness_seq (Data Element)
thickness_data (Data Element)
meas_comment (Data Element)


Return to diagram

cv (Entity)

Description:
@1 cv_seq+
who+
meas_date+
temp+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(cv_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
cv_seq (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
meas_comment (Data Element)


Return to diagram

rev_bias_bkdwn (Entity)

Description:
@1 rev_bias_bkdwn_seq+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(rev_bias_rel)"/+
rev_bias_bkdwn_data+
who+
meas_date+
temp+
humidity+
meas_comment

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
rev_bias_bkdwn_seq (Data Element)
rev_bias_bkdwn_data (Data Element)
meas_comment (Data Element)


Return to diagram

V_depletion (Entity)

Description:
@1 V_dep_seq+
who+
meas_date+
temp+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(v_dep_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
V_dep_seq (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
meas_comment (Data Element)


Return to diagram

R_poly (Entity)

Number: 0
Description:
@1 R_poly_seq+
who+
meas_date+
temp+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(r_poly_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
R_poly_seq (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
meas_comment (Data Element)


Return to diagram

g_ring_data (Entity)

Description:
@1 g_ring_data_seq+
g_ring_data_meas_time+
g_ring_data_current+
g_ring_data_temp+
@2 g_ring_current_seq / FKFROM &quotguard_ring_current.g_ring_current_seq(g_ring_data_rel)"/+
@3 Serial_Number / FKFROM &quotguard_ring_current.Serial_Number(g_ring_data_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
g_ring_current_seq (Data Element)
g_ring_data_seq (Data Element)
g_ring_data_meas_time (Data Element)
g_ring_data_current (Data Element)
g_ring_data_temp (Data Element)


Return to diagram

guard_ring_current (Entity)

Description:
@1 g_ring_current_seq+
g_ring_V_Bias+
who+
meas_date+
humidity+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(g_ring_current_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
g_ring_current_seq (Data Element)
g_ring_V_Bias (Data Element)
meas_comment (Data Element)


Return to diagram

coupling_capac (Entity)

Description:
@1 coup_cap_seq+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(coupling_capac_rel)"/+
who+
meas_date+
temp+
humidity+
meas_comment

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
humidity (Data Element)
temp (Data Element)
coup_cap_seq (Data Element)
meas_comment (Data Element)


Return to diagram

ivtotal_data (Entity)

Description:
@1 ivtotal_data_seq+
ivtotal_data_meas_time+
ivtotal_data_current+
ivtotal_data_temp+
@2 ivtotal_seq / FKFROM &quotivtotal.ivtotal_seq(ivtotal_data_rel)"/+
@3 Serial_Number / FKFROM &quotivtotal.Serial_Number(ivtotal_data_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
ivtotal_seq (Data Element)
ivtotal_data_seq (Data Element)
ivtotal_data_meas_time (Data Element)
ivtotal_data_current (Data Element)
ivtotal_data_temp (Data Element)


Return to diagram

bad_ch (Entity)

Description:
@1 bad_ch_seq+
who+
meas_date+
meas_comment+
@2 Serial_Number / FKFROM &quotsimain.Serial_Number(bad_strips_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
who (Data Element)
meas_date (Data Element)
bad_ch_seq (Data Element)
meas_comment (Data Element)


Return to diagram

cv_data (Entity)

Description:
@1 cv_data_seq+
cv_data_voltage+
cv_data_capacitance+
cv_data_inv_cap2+
@2 cv_seq / FKFROM &quotcv.cv_seq(cv_data_rel)"/+
@3 Serial_Number / FKFROM &quotcv.Serial_Number(cv_data_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
cv_seq (Data Element)
cv_data_seq (Data Element)
cv_data_voltage (Data Element)
cv_data_capacitance (Data Element)
cv_data_inv_cap2 (Data Element)


Return to diagram

ivstrip_data (Entity)

Description:
@1 ivstrip_data_channel+
ivstrip_data_I1+
ivstrip_data_I2+
ivstrip_data_I3+
@2 ivstrip_seq / FKFROM &quotivstrip.ivstrip_seq(ivstrip_data_rel)"/+
@3 Serial_Number / FKFROM &quotivstrip.Serial_Number(ivstrip_data_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
ivstrip_seq (Data Element)
ivstrip_data_channel (Data Element)
ivstrip_data_I1 (Data Element)
ivstrip_data_I2 (Data Element)
ivstrip_data_I3 (Data Element)


Return to diagram

bad_ch_data (Entity)

Description:
@1 bad_ch_data_channel+
bad_ch_data_problem+
@2 bad_ch_seq / FKFROM &quotbad_ch.bad_ch_seq(bad_ch_data_rel)"/+
@3 Serial_Number / FKFROM &quotbad_ch.Serial_Number(bad_ch_data_rel)"/

Normalize: T
Definitions Used:
Serial_Number (Data Element)
bad_ch_data_channel (Data Element)
bad_ch_seq (Data Element)
bad_ch_data_problem (Data Element)


Return to diagram

V_depletion_data (Entity)

Normalize: T
Description:
@1 V_dep_data_seq+
V_dep_data+
V_dep_method+
@2 V_dep_seq / FKFROM &quotV_depletion.V_dep_seq(v_dep_data_rel)"/+
@3 Serial_Number / FKFROM &quotV_depletion.Serial_Number(v_dep_data_rel)"/

Definitions Used:
Serial_Number (Data Element)
V_dep_seq (Data Element)
V_dep_data (Data Element)
V_dep_method (Data Element)
V_dep_data_seq (Data Element)


Return to diagram

R_poly_data (Entity)

Normalize: T
Description:
@1 R_poly_data_seq+
R_poly_data+
@2 R_poly_seq / FKFROM &quotR_poly.R_poly_seq(r_poly_data_rel)"/+
@3 Serial_Number / FKFROM &quotR_poly.Serial_Number(r_poly_data_rel)"/

Definitions Used:
Serial_Number (Data Element)
R_poly_seq (Data Element)
R_poly_data (Data Element)
R_poly_data_seq (Data Element)


Return to diagram

coupling_capac_data (Entity)

Normalize: T
Description:
@1 coup_cap_data_seq+
coup_cap_data+
@2 coup_cap_seq / FKFROM &quotcoupling_capac.coup_cap_seq(coupling_capac_data_rel)"/+
@3 Serial_Number / FKFROM &quotcoupling_capac.Serial_Number(coupling_capac_data_rel)"/

Definitions Used:
Serial_Number (Data Element)
coup_cap_seq (Data Element)
coup_cap_data_seq (Data Element)
coup_cap_data (Data Element)


Return to diagram

bad_ch_data_rel (Relation)

From Entity: bad_ch
To Entity: bad_ch_data
From Entity: bad_ch
To Entity: bad_ch_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

g_ring_data_rel (Relation)

From Entity: guard_ring_current
To Entity: g_ring_data
From Entity: guard_ring_current
To Entity: g_ring_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

ivtotal_data_rel (Relation)

From Entity: ivtotal
To Entity: ivtotal_data
From Entity: ivtotal
To Entity: ivtotal_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

g_ring_current_rel (Relation)

From Entity: simain
To Entity: guard_ring_current
From Entity: simain
To Entity: guard_ring_current
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

ivstrip_data_rel (Relation)

From Entity: ivstrip
To Entity: ivstrip_data
From Entity: ivstrip
To Entity: ivstrip_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

cv_data_rel (Relation)

From Entity: cv
To Entity: cv_data
From Entity: cv
To Entity: cv_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

thickness_rel (Relation)

From Entity: simain
To Entity: thickness
From Entity: simain
To Entity: thickness


Return to diagram

coupling_capac_rel (Relation)

From Entity: simain
To Entity: coupling_capac
From Entity: simain
To Entity: coupling_capac
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

coupling_capac_data_rel (Relation)

From Entity: coupling_capac
To Entity: coupling_capac_data
From Entity: coupling_capac
To Entity: coupling_capac_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

r_poly_rel (Relation)

From Entity: simain
To Entity: R_poly
From Entity: simain
To Entity: R_poly
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

v_dep_rel (Relation)

From Entity: simain
To Entity: V_depletion
Identifying: T
From Entity: simain
To Entity: V_depletion
Parent Update: Cascade
Parent Delete: Cascade
Child Insert: Restrict
Child Update: Restrict


Return to diagram

cv_rel (Relation)

From Entity: simain
To Entity: cv
Parent Insert: No_Action
Child Delete: No_Action
Identifying: T
From Entity: simain
To Entity: cv
Parent Update: Cascade
Parent Delete: Restrict
Child Insert: Restrict
Child Update: Restrict


Return to diagram

ivstrip_rel (Relation)

From Entity: simain
To Entity: ivstrip
From Entity: simain
To Entity: ivstrip
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

ivtotal_rel (Relation)

From Entity: simain
To Entity: ivtotal
From Entity: simain
To Entity: ivtotal
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

bad_strips_rel (Relation)

From Entity: simain
To Entity: bad_ch
From Entity: simain
To Entity: bad_ch
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

v_dep_data_rel (Relation)

From Entity: V_depletion
To Entity: V_depletion_data
From Entity: V_depletion
To Entity: V_depletion_data


Return to diagram

rev_bias_rel (Relation)

From Entity: simain
To Entity: rev_bias_bkdwn
From Entity: simain
To Entity: rev_bias_bkdwn
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

coup_cap_bkdwn_rel (Relation)

From Entity: simain
To Entity: coup_cap_bkdwn
From Entity: simain
To Entity: coup_cap_bkdwn
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram

r_poly_data_rel (Relation)

From Entity: R_poly
To Entity: R_poly_data
From Entity: R_poly
To Entity: R_poly_data
Identifying: T
Parent Insert: No_Action
Parent Update: Cascade
Parent Delete: Restrict
Child Delete: No_Action
Child Insert: Restrict
Child Update: Restrict


Return to diagram


Return to diagram index
