erhic::EventBeagle Class Reference
#include <EventPythia.h>

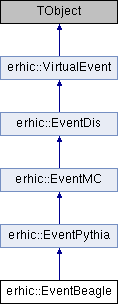

Inheritance diagram for erhic::EventBeagle:
Public Member Functions | |
| EventBeagle (const std::string &str="") | |
| ~EventBeagle () | |
| bool | RequiresEaParticleFields () |
| bool | Parse (const std::string &) |
| Parses the event information from a text string. More... | |
 Public Member Functions inherited from erhic::EventPythia | |
| EventPythia (const std::string &str="") | |
| Constructor. More... | |
| virtual | ~EventPythia () |
| Destructor. More... | |
| virtual void | SetNucleon (int n) |
| Sets the nucleon species. More... | |
| virtual void | SetTargetParton (int n) |
| Sets the target parton species. More... | |
| virtual void | SetBeamParton (int n) |
| Sets the beam parton species. More... | |
| virtual void | SetGenEvent (int n) |
| Sets the number of trials required to generate this event. More... | |
| virtual void | SetTargetPartonX (double xB) |
| Sets the x of the target parton. More... | |
| virtual void | SetBeamPartonX (double xB) |
| Sets the x of the beam parton. More... | |
| virtual void | SetBeamPartonTheta (double radians) |
| Sets the polar angle of the beam parton in the cm frame. More... | |
| virtual void | SetLeptonPhi (double radians) |
| Azimuthal angle of the scattered lepton in the cm frame. More... | |
| virtual void | SetF1 (double f1) |
| Used for radiative corrections. More... | |
| virtual void | SetF2 (double f2) |
| Used for radiative corrections. More... | |
| virtual void | SetSigmaRad (double sr) |
| Used for radiative corrections. More... | |
| virtual void | SetHardS (double s) |
| Sets the Mandelstamm s of the hard interaction. More... | |
| virtual void | SetHardT (double t) |
| Sets the Mandelstamm t of the hard interaction. More... | |
| virtual void | SetHardU (double u) |
| Sets the Mandelstamm u of the hard interaction. More... | |
| virtual void | SetHardQ2 (double Q2) |
| Sets the Q2 of the hard interaction. More... | |
| virtual void | SetHardPt2 (double pt2) |
| Sets the squared pT of the hard interaction. More... | |
| virtual void | SetSigRadCor (double s) |
| Used for radiative corrections. More... | |
| virtual void | SetEBrems (double e) |
| Sets the energy per radiative photon in the nuclear rest frame. More... | |
| virtual void | SetPhotonFlux (double f) |
| Flux factor, see VINT(319) in PYTHIA 6. More... | |
| virtual void | SetTrueY (double inelasticity) |
| Sets the true (not reconstructed) value for inelasticity. More... | |
| virtual void | SetTrueQ2 (double Q2) |
| Sets the true (not reconstructed) value for Q2. More... | |
| virtual void | SetTrueX (double x) |
| Sets the true (not reconstructed) value for x. More... | |
| virtual void | SetTrueW2 (double W2) |
| Sets the true (not reconstructed) value for W2. More... | |
| virtual void | SetTrueNu (double Nu) |
| Sets the true (not reconstructed) value for nu. More... | |
| virtual void | SetR (double r) |
| Used for radiative corrections. More... | |
| virtual int | GetGenEvent () const |
| Returns the number of trials required to generate this event. More... | |
| virtual double | GetTargetPartonX () const |
| Returns the x of the target parton. More... | |
| virtual double | GetBeamPartonX () const |
| Returns the x of the beam parton. More... | |
| virtual double | GetBeamPartonTheta () const |
| Returns the polar angle of the beam parton in the cm frame, in radians in the range [0, pi]. More... | |
| virtual double | GetLeptonPhi () const |
| Returns the azimuthal angle of the scattered lepton. More... | |
| virtual double | GetF1 () const |
| Used for radiative corrections. More... | |
| virtual double | GetF2 () const |
| Used for radiative corrections. More... | |
| virtual double | GetSigmaRad () const |
| Used for radiative corrections. More... | |
| virtual double | GetHardS () const |
| Returns the Mandelstamm s of the hard interaction. More... | |
| virtual double | GetHardT () const |
| Returns the Mandelstamm t of the hard interaction. More... | |
| virtual double | GetHardU () const |
| Returns the Mandelstamm u of the hard interaction. More... | |
| virtual double | GetHardQ2 () const |
| Returns the Q2 of the hard interaction. More... | |
| virtual double | GetHardPt2 () const |
| Returns the squared pT of the hard interaction. More... | |
| virtual double | GetSigRadCor () const |
| Used for radiative corrections. More... | |
| virtual double | GetEBrems () const |
| Returnss the energy per radiative photon in the nuclear rest frame. More... | |
| virtual double | GetPhotonFlux () const |
| Returns the flux factor, see VINT(319) in PYTHIA 6. More... | |
| virtual double | GetTrueY () const |
| Sets the true (not reconstructed) value for inelasticity. More... | |
| virtual double | GetTrueQ2 () const |
| Sets the true (not reconstructed) value for Q2. More... | |
| virtual double | GetTrueX () const |
| Sets the true (not reconstructed) value for x. More... | |
| virtual double | GetTrueW2 () const |
| Sets the true (not reconstructed) value for W2. More... | |
| virtual double | GetTrueNu () const |
| Sets the true (not reconstructed) value for ν. More... | |
| virtual double | GetR () const |
| Used for radiative corrections. More... | |
| virtual const ParticleMC * | ScatteredLepton () const |
| Returns the scattered lepton. More... | |
| Public Member Functions inherited from erhic::EventMC | |
| EventMC () | |
| Constructor. More... | |
| virtual | ~EventMC () |
| Destructor. More... | |
| virtual ULong64_t | GetN () const |
| Returns a unique identifier for this event. More... | |
| virtual Int_t | GetProcess () const |
| Returns a code describing the production process of this event. More... | |
| virtual UInt_t | GetNTracks () const |
| Returns the number of tracks in the event. More... | |
| virtual const ParticleMC * | GetTrack (UInt_t) const |
| Returns the nth track. More... | |
| virtual ParticleMC * | GetTrack (UInt_t) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| virtual const ParticleMC * | BeamLepton () const |
| Returns a pointer to the incident lepton beam particle. More... | |
| virtual const ParticleMC * | BeamHadron () const |
| Returns a pointer to the incident hadron beam particle. More... | |
| virtual const ParticleMC * | ExchangeBoson () const |
| Returns a pointer to the exchanged boson. More... | |
| virtual void | AddLast (ParticleMC *track) |
| Add a copy of a track argument to the end of the track list. More... | |
| virtual void | Reset () |
| Resets event properties to defaults. More... | |
| virtual void | Clear (Option_t *="") |
| Clears event contents. More... | |
| virtual void | SetProcess (int code) |
| Sets the code describing the production process of this event. More... | |
| virtual void | SetN (int n) |
| Sets the unique identifier for this event. More... | |
| virtual void | SetNTracks (int n) |
| Sets the track count for this event. More... | |
| virtual void | SetELeptonInNuclearFrame (double energy) |
| Set incident lepton energy in the nuclear rest frame. More... | |
| virtual void | SetEScatteredInNuclearFrame (double energy) |
| Set scattered lepton energy in the nuclear rest frame. More... | |
| void | FinalState (ParticlePtrList &particles) const |
| Stores pointers to all final state particles in the list. More... | |
| void | HadronicFinalState (ParticlePtrList &) const |
| Yields all particles that belong to the hadronic final state. More... | |
| TLorentzVector | FinalStateMomentum () const |
| Returns the total momentum of the final state in GeV/c. More... | |
| TLorentzVector | HadronicFinalStateMomentum () const |
| Returns the total momentum of the hadronic final state in GeV/c. More... | |
| Double_t | FinalStateCharge () const |
| Returns the total charge of the final state in units of e. More... | |
| std::vector< const VirtualParticle * > | GetTracks () const |
| Returns pointers to all tracks in the event. More... | |
| Public Member Functions inherited from erhic::EventDis | |
| virtual | ~EventDis () |
| Destructor. More... | |
| EventDis () | |
| Default constructor. More... | |
| EventDis (const EventDis &) | |
| Constructor copying another event's kinematics. More... | |
| EventDis & | operator= (const EventDis &) |
| Assign another event's kinematics to this EventDis. More... | |
| virtual Double_t | GetX () const |
| Returns Bjorken-x of the event. More... | |
| virtual Double_t | GetQ2 () const |
| Returns the four-momentum transfer (exchange boson mass) Q2. More... | |
| virtual Double_t | GetY () const |
| Returns the event inelasticity. More... | |
| virtual Double_t | GetYPlus () const |
| Returns Y+ = y2 / (1 + (1-y)2) More... | |
| virtual Double_t | GetW2 () const |
| Returns the invariant mass of the hadronic final state. More... | |
| virtual Double_t | GetNu () const |
| Returns the exchange boson energy in the beam hadron rest frame. More... | |
| virtual double | GetXDoubleAngle () const |
| Returns Bjorken x computed via the double-angle method. More... | |
| virtual double | GetQ2DoubleAngle () const |
| Returns Q-squared computed via the double-angle method. More... | |
| virtual double | GetYDoubleAngle () const |
| Returns inelasticity computed via the double-angle method. More... | |
| virtual double | GetW2DoubleAngle () const |
| Returns W-squared computed via the double-angle method. More... | |
| virtual double | GetXJacquetBlondel () const |
| Returns Bjorken x computed via the Jacquet-Blondel method. More... | |
| virtual double | GetQ2JacquetBlondel () const |
| Returns Q-squared computed via the Jacquet-Blondel method. More... | |
| virtual double | GetYJacquetBlondel () const |
| Returns inelasticity computed via the Jacquet-Blondel method. More... | |
| virtual double | GetW2JacquetBlondel () const |
| Returns W-squared computed via the Jacquet-Blondel method. More... | |
| virtual void | SetLeptonKinematics (const DisKinematics &) |
| Set the kinematics computed from the scattered lepton. More... | |
| virtual void | SetJacquetBlondelKinematics (const DisKinematics &) |
| Set the kinematics computed from the Jacquet-Blondel method. More... | |
| virtual void | SetDoubleAngleKinematics (const DisKinematics &) |
| Set the kinematics computed from the double-angle method. More... | |
| virtual void | CopyKinematics (const EventDis &) |
| Copy the kinematics from another event to this event. More... | |
| Public Member Functions inherited from erhic::VirtualEvent | |
| virtual | ~VirtualEvent () |
| Destructor. More... | |
Public Attributes | |
| Int_t | lepton |
| =================additional variables for BeAGLE================== More... | |
| Int_t | Atarg |
| mass number of target beam More... | |
| Int_t | Ztarg |
| charge number of target beam More... | |
| Double32_t | pzlep |
| lepton beam momentum More... | |
| Double32_t | pztarg |
| target beam momentum More... | |
| Double32_t | pznucl |
| target nucleon momentum More... | |
| Double32_t | crang |
| crossing angle (mr). crang=1000*atan(px/pz), one beam px=py=0, the other py=0 More... | |
| Double32_t | crori |
| crossing angle orientation, +-1 lepton beam along +-z, +-2 hadron beam along +-z, 0 meas no crossing angle More... | |
| Double32_t | b |
| impact parameter value More... | |
| Double32_t | Phib |
| phi of impact parameter vector More... | |
| Double32_t | Thickness |
| T(b) in nucleons/fm^2. More... | |
| Double32_t | ThickScl |
| T(b)/rho0 in fm. More... | |
| Int_t | Ncollt |
| Number of collisions in target. More... | |
| Int_t | Ncolli |
| Number of inelastic collisions in target. More... | |
| Int_t | Nwound |
| Number of wounded nucleon including those in INC. More... | |
| Int_t | Nwdch |
| Number of wounded proton including those in INC. More... | |
| Int_t | Nnevap |
| Number of neutrons from evaporation. More... | |
| Int_t | Npevap |
| Number of protons from evaporation. More... | |
| Int_t | Aremn |
| A of the nuclear remnant after evaporation and breakup. More... | |
| Int_t | NINC |
| Number of stable hadrons from intranuclear cascade. More... | |
| Int_t | NINCch |
| Number of charged stable hadrons from intranuclear cascade. More... | |
| Double32_t | d1st |
| density-weighted distance from first collision to the edge of the nucleus (amount of material traversed / rho0) More... | |
| Double32_t | davg |
| Average density-weighted distance from all inelastic collisions to the edge of the nucleus. More... | |
| Double32_t | pxf |
| Sum fermi momentum of all inelastic participant in target rest frame z along gamma*. More... | |
| Double32_t | pyf |
| Sum fermi momentum of all inelastic participant in target rest frame z along gamma*. More... | |
| Double32_t | pzf |
| Sum fermi momentum of all inelastic participant in target rest frame z along gamma*. More... | |
| Double32_t | Eexc |
| Excitation energy in the nuclear remnant before evaporation and breakup. More... | |
| Double32_t | RAevt |
| Nuclear PDF ratio for the up sea for the given event kinematics. More... | |
| Double32_t | User1 |
| User variables to prevent/delay future format changes. More... | |
| Double32_t | User2 |
| User variables to prevent/delay future format changes. More... | |
| Double32_t | User3 |
| User variables to prevent/delay future format changes. More... | |
| Public Attributes inherited from erhic::EventPythia | |
| Int_t | nucleon |
| PDG code of the hadron beam, see MSTI(12) More... | |
| Int_t | tgtparton |
| PDG code of the struck parton in the hadron beam, see MSTI(16) More... | |
| Int_t | beamparton |
| Parton interacting with the hadron beam in the case of resolved photon processes and soft VMD, see MSTI(15) More... | |
| Int_t | genevent |
| Trials required for this event. More... | |
| Double32_t | xtgtparton |
| Momentum fraction taken by the target parton, see PARI(34) More... | |
| Double32_t | xbeamparton |
| Momentum fraction taken by the beam parton, see PARI(33) More... | |
| Double32_t | thetabeamparton |
| Polar angle of the beam parton in the cm frame, between 0 and pi radians, see PARI(53) More... | |
| Double32_t | leptonphi |
| Azimuthal angle of the scattered lepton in the cm frame. More... | |
| Double32_t | F1 |
| Value used for radiative corrections. More... | |
| Double32_t | sigma_rad |
| Value used for radiative corrections. More... | |
| Double32_t | t_hat |
| Mandelstam t of the hard subprocess, see PARI(15) More... | |
| Double32_t | u_hat |
| Mandelstam u of the hard subprocess, see PARI(16) More... | |
| Double32_t | Q2_hat |
| Q2 of the hard subprocess, see PARI(22) More... | |
| Double32_t | SigRadCor |
| Value used for radiative corrections. More... | |
| Double32_t | EBrems |
| Energy per radiative photon in the nuclear rest frame. More... | |
| Double32_t | photonflux |
| Flux factor, see VINT(319) More... | |
| Double32_t | trueY |
| Generated y of the event, see VINT(309) More... | |
| Double32_t | trueQ2 |
| Generated Q2 of the event, see VINT(307) More... | |
| Double32_t | trueX |
| Generated x of the event. More... | |
| Double32_t | trueW2 |
| Generated W2 of the event. More... | |
| Double32_t | trueNu |
| Generated nu of the event. More... | |
| Double32_t | F2 |
| Value used for radiative corrections. More... | |
| Double32_t | R |
| Value used for radiative corrections. More... | |
| Double32_t | pt2_hat |
| Squared pT of the hard subprocess, see PARI(18) More... | |
| Double32_t | sHat |
| Mandelstam s of the hard subprocess, see PARI(14) More... | |
| Public Attributes inherited from erhic::EventDis | |
| Double32_t | x |
| Bjorken scaling variable. More... | |
| Double32_t | QSquared |
| Q2 calculated from scattered electron. More... | |
| Double32_t | y |
| Inelasticity. More... | |
| Double32_t | WSquared |
| Invariant mass of the hadronic system. More... | |
| Double32_t | nu |
| Energy transfer from the electron. More... | |
| Double32_t | yJB |
| y calculated via the Jacquet-Blondel method More... | |
| Double32_t | QSquaredJB |
| Q2 calculated via the Jacquet-Blondel method. More... | |
| Double32_t | xJB |
| x calculated via the Jacquet-Blondel method More... | |
| Double32_t | WSquaredJB |
| W2 calculated via the Jacquet-Blondel method. More... | |
| Double32_t | yDA |
| y calculated via the double-angle method More... | |
| Double32_t | QSquaredDA |
| Q2 calculated via the double-angle method. More... | |
| Double32_t | xDA |
| x calculated via the double-angle method More... | |
| Double32_t | WSquaredDA |
| W2 calculated via the double-angle method. More... | |
Additional Inherited Members | |
| Public Types inherited from erhic::VirtualEvent | |
| typedef std::vector< const erhic::VirtualParticle * > | ParticlePtrList |
| typedef for a track pointer collection. More... | |
| Protected Attributes inherited from erhic::EventMC | |
| Int_t | number |
| Event number. More... | |
| Int_t | process |
| PYTHIA code for the physics process producing the event. More... | |
| Int_t | nTracks |
| Number of Particles in the event (intermediate + final) More... | |
| Double32_t | ELeptonInNucl |
| Incident lepton energy in the nuclear rest frame. More... | |
| Double32_t | ELeptonOutNucl |
| Scattered lepton energy in the nuclear rest frame. More... | |
| TClonesArray | particles |
| Particle list. More... | |
Detailed Description
Definition at line 546 of file erhic/EventPythia.h.
Constructor & Destructor Documentation
◆ EventBeagle()
|
explicit |
Definition at line 98 of file erhic/EventPythia.cxx.
◆ ~EventBeagle()
| erhic::EventBeagle::~EventBeagle | ( | ) |
Definition at line 135 of file erhic/EventPythia.cxx.
Member Function Documentation
◆ Parse()
|
virtual |
Parses the event information from a text string.
See the constructor for the string format. Returns true in the event of a successful read operation, false in case of an error.
Reimplemented from erhic::EventPythia.
Definition at line 137 of file erhic/EventPythia.cxx.
◆ RequiresEaParticleFields()
|
inlinevirtual |
Reimplemented from erhic::EventMC.
Definition at line 552 of file erhic/EventPythia.h.
Member Data Documentation
◆ Aremn
| Int_t erhic::EventBeagle::Aremn |
A of the nuclear remnant after evaporation and breakup.
Definition at line 576 of file erhic/EventPythia.h.
◆ Atarg
| Int_t erhic::EventBeagle::Atarg |
mass number of target beam
Definition at line 559 of file erhic/EventPythia.h.
◆ b
| Double32_t erhic::EventBeagle::b |
impact parameter value
Definition at line 566 of file erhic/EventPythia.h.
◆ crang
| Double32_t erhic::EventBeagle::crang |
crossing angle (mr). crang=1000*atan(px/pz), one beam px=py=0, the other py=0
Definition at line 564 of file erhic/EventPythia.h.
◆ crori
| Double32_t erhic::EventBeagle::crori |
crossing angle orientation, +-1 lepton beam along +-z, +-2 hadron beam along +-z, 0 meas no crossing angle
Definition at line 565 of file erhic/EventPythia.h.
◆ d1st
| Double32_t erhic::EventBeagle::d1st |
density-weighted distance from first collision to the edge of the nucleus (amount of material traversed / rho0)
Definition at line 579 of file erhic/EventPythia.h.
◆ davg
| Double32_t erhic::EventBeagle::davg |
Average density-weighted distance from all inelastic collisions to the edge of the nucleus.
Definition at line 580 of file erhic/EventPythia.h.
◆ Eexc
| Double32_t erhic::EventBeagle::Eexc |
Excitation energy in the nuclear remnant before evaporation and breakup.
Definition at line 584 of file erhic/EventPythia.h.
◆ lepton
| Int_t erhic::EventBeagle::lepton |
=================additional variables for BeAGLE==================
lepton beam ID
Definition at line 558 of file erhic/EventPythia.h.
◆ Ncolli
| Int_t erhic::EventBeagle::Ncolli |
Number of inelastic collisions in target.
Definition at line 571 of file erhic/EventPythia.h.
◆ Ncollt
| Int_t erhic::EventBeagle::Ncollt |
Number of collisions in target.
Definition at line 570 of file erhic/EventPythia.h.
◆ NINC
| Int_t erhic::EventBeagle::NINC |
Number of stable hadrons from intranuclear cascade.
Definition at line 577 of file erhic/EventPythia.h.
◆ NINCch
| Int_t erhic::EventBeagle::NINCch |
Number of charged stable hadrons from intranuclear cascade.
Definition at line 578 of file erhic/EventPythia.h.
◆ Nnevap
| Int_t erhic::EventBeagle::Nnevap |
Number of neutrons from evaporation.
Definition at line 574 of file erhic/EventPythia.h.
◆ Npevap
| Int_t erhic::EventBeagle::Npevap |
Number of protons from evaporation.
Definition at line 575 of file erhic/EventPythia.h.
◆ Nwdch
| Int_t erhic::EventBeagle::Nwdch |
Number of wounded proton including those in INC.
Definition at line 573 of file erhic/EventPythia.h.
◆ Nwound
| Int_t erhic::EventBeagle::Nwound |
Number of wounded nucleon including those in INC.
Definition at line 572 of file erhic/EventPythia.h.
◆ Phib
| Double32_t erhic::EventBeagle::Phib |
phi of impact parameter vector
Definition at line 567 of file erhic/EventPythia.h.
◆ pxf
| Double32_t erhic::EventBeagle::pxf |
Sum fermi momentum of all inelastic participant in target rest frame z along gamma*.
Definition at line 581 of file erhic/EventPythia.h.
◆ pyf
| Double32_t erhic::EventBeagle::pyf |
Sum fermi momentum of all inelastic participant in target rest frame z along gamma*.
Definition at line 582 of file erhic/EventPythia.h.
◆ pzf
| Double32_t erhic::EventBeagle::pzf |
Sum fermi momentum of all inelastic participant in target rest frame z along gamma*.
Definition at line 583 of file erhic/EventPythia.h.
◆ pzlep
| Double32_t erhic::EventBeagle::pzlep |
lepton beam momentum
Definition at line 561 of file erhic/EventPythia.h.
◆ pznucl
| Double32_t erhic::EventBeagle::pznucl |
target nucleon momentum
Definition at line 563 of file erhic/EventPythia.h.
◆ pztarg
| Double32_t erhic::EventBeagle::pztarg |
target beam momentum
Definition at line 562 of file erhic/EventPythia.h.
◆ RAevt
| Double32_t erhic::EventBeagle::RAevt |
Nuclear PDF ratio for the up sea for the given event kinematics.
Definition at line 585 of file erhic/EventPythia.h.
◆ Thickness
| Double32_t erhic::EventBeagle::Thickness |
T(b) in nucleons/fm^2.
Definition at line 568 of file erhic/EventPythia.h.
◆ ThickScl
| Double32_t erhic::EventBeagle::ThickScl |
T(b)/rho0 in fm.
Definition at line 569 of file erhic/EventPythia.h.
◆ User1
| Double32_t erhic::EventBeagle::User1 |
User variables to prevent/delay future format changes.
Definition at line 586 of file erhic/EventPythia.h.
◆ User2
| Double32_t erhic::EventBeagle::User2 |
User variables to prevent/delay future format changes.
Definition at line 587 of file erhic/EventPythia.h.
◆ User3
| Double32_t erhic::EventBeagle::User3 |
User variables to prevent/delay future format changes.
Definition at line 588 of file erhic/EventPythia.h.
◆ Ztarg
| Int_t erhic::EventBeagle::Ztarg |
charge number of target beam
Definition at line 560 of file erhic/EventPythia.h.
The documentation for this class was generated from the following files:
