Abstract base class for DIS Monte Carlo events. More...

#include <EventMC.h>

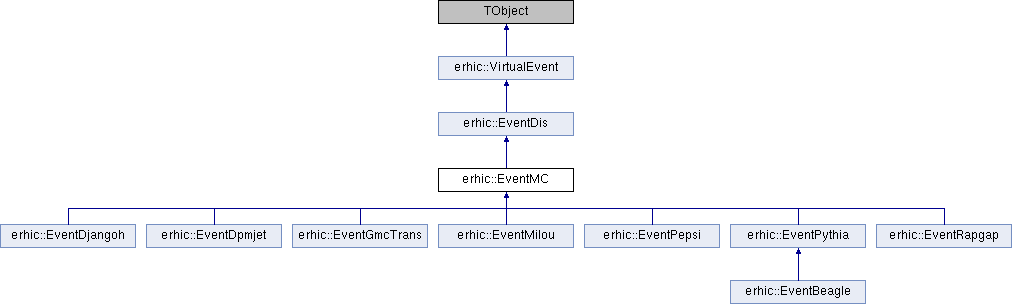

Inheritance diagram for erhic::EventMC:

Public Member Functions
	EventMC ()
	Constructor. More...

virtual	~EventMC ()
	Destructor. More...

virtual bool	RequiresEaParticleFields ()

virtual ULong64_t	GetN () const
	Returns a unique identifier for this event. More...

virtual Int_t	GetProcess () const
	Returns a code describing the production process of this event. More...

virtual UInt_t	GetNTracks () const
	Returns the number of tracks in the event. More...

virtual const ParticleMC *	GetTrack (UInt_t) const
	Returns the nth track. More...

virtual ParticleMC *	GetTrack (UInt_t)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

virtual const ParticleMC *	BeamLepton () const
	Returns a pointer to the incident lepton beam particle. More...

virtual const ParticleMC *	BeamHadron () const
	Returns a pointer to the incident hadron beam particle. More...

virtual const ParticleMC *	ExchangeBoson () const
	Returns a pointer to the exchanged boson. More...

virtual const ParticleMC *	ScatteredLepton () const
	Returns a pointer to the lepton beam particle after scattering. More...

virtual bool	Parse (const std::string &)=0
	Populates the event-wise variables from a string. More...

virtual void	AddLast (ParticleMC *track)
	Add a copy of a track argument to the end of the track list. More...

virtual void	Reset ()
	Resets event properties to defaults. More...

virtual void	Clear (Option_t *="")
	Clears event contents. More...

virtual void	SetProcess (int code)
	Sets the code describing the production process of this event. More...

virtual void	SetN (int n)
	Sets the unique identifier for this event. More...

virtual void	SetNTracks (int n)
	Sets the track count for this event. More...

virtual void	SetELeptonInNuclearFrame (double energy)
	Set incident lepton energy in the nuclear rest frame. More...

virtual void	SetEScatteredInNuclearFrame (double energy)
	Set scattered lepton energy in the nuclear rest frame. More...

void	FinalState (ParticlePtrList &particles) const
	Stores pointers to all final state particles in the list. More...

void	HadronicFinalState (ParticlePtrList &) const
	Yields all particles that belong to the hadronic final state. More...

TLorentzVector	FinalStateMomentum () const
	Returns the total momentum of the final state in GeV/c. More...

TLorentzVector	HadronicFinalStateMomentum () const
	Returns the total momentum of the hadronic final state in GeV/c. More...

Double_t	FinalStateCharge () const
	Returns the total charge of the final state in units of e. More...

std::vector< const VirtualParticle * >	GetTracks () const
	Returns pointers to all tracks in the event. More...

Public Member Functions inherited from erhic::EventDis
virtual	~EventDis ()
	Destructor. More...

	EventDis ()
	Default constructor. More...

	EventDis (const EventDis &)
	Constructor copying another event's kinematics. More...

EventDis &	operator= (const EventDis &)
	Assign another event's kinematics to this EventDis. More...

virtual Double_t	GetX () const
	Returns Bjorken-x of the event. More...

virtual Double_t	GetQ2 () const
	Returns the four-momentum transfer (exchange boson mass) Q². More...

virtual Double_t	GetY () const
	Returns the event inelasticity. More...

virtual Double_t	GetYPlus () const
	Returns Y+ = y² / (1 + (1-y)²) More...

virtual Double_t	GetW2 () const
	Returns the invariant mass of the hadronic final state. More...

virtual Double_t	GetNu () const
	Returns the exchange boson energy in the beam hadron rest frame. More...

virtual double	GetXDoubleAngle () const
	Returns Bjorken x computed via the double-angle method. More...

virtual double	GetQ2DoubleAngle () const
	Returns Q-squared computed via the double-angle method. More...

virtual double	GetYDoubleAngle () const
	Returns inelasticity computed via the double-angle method. More...

virtual double	GetW2DoubleAngle () const
	Returns W-squared computed via the double-angle method. More...

virtual double	GetXJacquetBlondel () const
	Returns Bjorken x computed via the Jacquet-Blondel method. More...

virtual double	GetQ2JacquetBlondel () const
	Returns Q-squared computed via the Jacquet-Blondel method. More...

virtual double	GetYJacquetBlondel () const
	Returns inelasticity computed via the Jacquet-Blondel method. More...

virtual double	GetW2JacquetBlondel () const
	Returns W-squared computed via the Jacquet-Blondel method. More...

virtual void	SetLeptonKinematics (const DisKinematics &)
	Set the kinematics computed from the scattered lepton. More...

virtual void	SetJacquetBlondelKinematics (const DisKinematics &)
	Set the kinematics computed from the Jacquet-Blondel method. More...

virtual void	SetDoubleAngleKinematics (const DisKinematics &)
	Set the kinematics computed from the double-angle method. More...

virtual void	CopyKinematics (const EventDis &)
	Copy the kinematics from another event to this event. More...

Public Member Functions inherited from erhic::VirtualEvent
virtual	~VirtualEvent ()
	Destructor. More...

Protected Attributes
Int_t	number
	Event number. More...

Int_t	process
	PYTHIA code for the physics process producing the event. More...

Int_t	nTracks
	Number of Particles in the event (intermediate + final) More...

Double32_t	ELeptonInNucl
	Incident lepton energy in the nuclear rest frame. More...

Double32_t	ELeptonOutNucl
	Scattered lepton energy in the nuclear rest frame. More...

TClonesArray	particles
	Particle list. More...

Additional Inherited Members
Public Types inherited from erhic::VirtualEvent
typedef std::vector< const erhic::VirtualParticle * >	ParticlePtrList
	typedef for a track pointer collection. More...

Public Attributes inherited from erhic::EventDis
Double32_t	x
	Bjorken scaling variable. More...

Double32_t	QSquared
	Q² calculated from scattered electron. More...

Double32_t	y
	Inelasticity. More...

Double32_t	WSquared
	Invariant mass of the hadronic system. More...

Double32_t	nu
	Energy transfer from the electron. More...

Double32_t	yJB
	y calculated via the Jacquet-Blondel method More...

Double32_t	QSquaredJB
	Q2 calculated via the Jacquet-Blondel method. More...

Double32_t	xJB
	x calculated via the Jacquet-Blondel method More...

Double32_t	WSquaredJB
	W2 calculated via the Jacquet-Blondel method. More...

Double32_t	yDA
	y calculated via the double-angle method More...

Double32_t	QSquaredDA
	Q2 calculated via the double-angle method. More...

Double32_t	xDA
	x calculated via the double-angle method More...

Double32_t	WSquaredDA
	W2 calculated via the double-angle method. More...

Detailed Description

Abstract base class for DIS Monte Carlo events.

Implements common event properties and methods.

Definition at line 30 of file erhic/EventMC.h.

Constructor & Destructor Documentation

◆ EventMC()

erhic::EventMC::EventMC ( )

Constructor.

Definition at line 34 of file erhic/EventMC.cxx.

◆ ~EventMC()

erhic::EventMC::~EventMC ( )

virtual

Destructor.

Definition at line 43 of file erhic/EventMC.cxx.

Member Function Documentation

◆ AddLast()

void erhic::EventMC::AddLast ( ParticleMC * track )

virtual

Add a copy of a track argument to the end of the track list.

Parameters

[in] Pointer to the track to add.

Definition at line 150 of file erhic/EventMC.cxx.

◆ BeamHadron()

const ParticleMC * erhic::EventMC::BeamHadron ( ) const

virtual

Returns a pointer to the incident hadron beam particle.

◆ BeamLepton()

const ParticleMC * erhic::EventMC::BeamLepton ( ) const

virtual

Returns a pointer to the incident lepton beam particle.

Returns a NULL pointer if the particle cannot be located in the event. IMPORTANT - DO NOT DELETE THE POINTER OR BAD THINGS WILL HAPPEN!

In the standard eRHIC Monte Carlo format, the incident lepton beam is assumed to be the first particle in the particle list. This is the behaviour implemented here. Derived classes can implement other selection mechanisms depending on their data format.

Implements erhic::EventDis.

Definition at line 122 of file erhic/EventMC.cxx.

◆ Clear()

void erhic::EventMC::Clear ( Option_t * = "" )

virtual

Clears event contents.

Event properties are reset to defaults and track list is deleted.

Definition at line 145 of file erhic/EventMC.cxx.

◆ ExchangeBoson()

const ParticleMC * erhic::EventMC::ExchangeBoson ( ) const

virtual

Returns a pointer to the exchanged boson.

◆ FinalState()

void erhic::EventMC::FinalState ( ParticlePtrList & particles ) const

Stores pointers to all final state particles in the list.

These pointers should not be deleted by the user. Any existing entries in the list are not changed.

Parameters

[out] particles The list in which to store particles.

Definition at line 73 of file erhic/EventMC.cxx.

◆ FinalStateCharge()

Double_t erhic::EventMC::FinalStateCharge ( ) const

Returns the total charge of the final state in units of e.

Definition at line 106 of file erhic/EventMC.cxx.

◆ FinalStateMomentum()

TLorentzVector erhic::EventMC::FinalStateMomentum ( ) const

Returns the total momentum of the final state in GeV/c.

Definition at line 84 of file erhic/EventMC.cxx.

◆ GetN()

ULong64_t erhic::EventMC::GetN ( ) const

inlinevirtual

Returns a unique identifier for this event.

Definition at line 215 of file erhic/EventMC.h.

◆ GetNTracks()

UInt_t erhic::EventMC::GetNTracks ( ) const

inlinevirtual

Returns the number of tracks in the event.

Implements erhic::VirtualEvent.

Definition at line 223 of file erhic/EventMC.h.

◆ GetProcess()

Int_t erhic::EventMC::GetProcess ( ) const

inlinevirtual

Returns a code describing the production process of this event.

Definition at line 219 of file erhic/EventMC.h.

◆ GetTrack() [1/2]

ParticleMC * erhic::EventMC::GetTrack ( UInt_t )

inlinevirtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Implements erhic::VirtualEvent.

Definition at line 235 of file erhic/EventMC.h.

◆ GetTrack() [2/2]

const ParticleMC * erhic::EventMC::GetTrack ( UInt_t u ) const

inlinevirtual

Returns the nth track.

Returns NULL if the track number is out of the range [0, GetNTracks()).

Parameters

[in] The track index, in the range [0, GetNTracks()).

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Implements erhic::VirtualEvent.

Definition at line 227 of file erhic/EventMC.h.

◆ GetTracks()

TrackVector erhic::EventMC::GetTracks ( ) const

Returns pointers to all tracks in the event.

Do not delete the pointers.

Definition at line 48 of file erhic/EventMC.cxx.

◆ HadronicFinalState()

void erhic::EventMC::HadronicFinalState ( ParticlePtrList & ) const

virtual

Yields all particles that belong to the hadronic final state.

This is the same as the result of FinalState(), minus the scattered beam lepton.

Reimplemented from erhic::VirtualEvent.

Definition at line 58 of file erhic/EventMC.cxx.

◆ HadronicFinalStateMomentum()

TLorentzVector erhic::EventMC::HadronicFinalStateMomentum ( ) const

Returns the total momentum of the hadronic final state in GeV/c.

Definition at line 95 of file erhic/EventMC.cxx.

◆ Parse()

virtual bool erhic::EventMC::Parse ( const std::string & )

pure virtual

Populates the event-wise variables from a string.

Does not populate the particle list or compute derived quantities. See also Compute().

Implemented in erhic::EventBeagle, erhic::EventPythia, erhic::EventGmcTrans, erhic::EventDjangoh, erhic::EventMilou, erhic::EventPepsi, erhic::EventDpmjet, and erhic::EventRapgap.

◆ RequiresEaParticleFields()

virtual bool erhic::EventMC::RequiresEaParticleFields ( )

inlinevirtual

Reimplemented in erhic::EventBeagle.

Definition at line 42 of file erhic/EventMC.h.

◆ Reset()

void erhic::EventMC::Reset ( )

virtual

Resets event properties to defaults.

Does not clear particle list - use Clear() for that.

Definition at line 138 of file erhic/EventMC.cxx.

◆ ScatteredLepton()

const ParticleMC * erhic::EventMC::ScatteredLepton ( ) const

virtual

Returns a pointer to the lepton beam particle after scattering.

◆ SetELeptonInNuclearFrame()

void erhic::EventMC::SetELeptonInNuclearFrame ( double energy )

inlinevirtual

Set incident lepton energy in the nuclear rest frame.

Definition at line 255 of file erhic/EventMC.h.

◆ SetEScatteredInNuclearFrame()

void erhic::EventMC::SetEScatteredInNuclearFrame ( double energy )

inlinevirtual

Set scattered lepton energy in the nuclear rest frame.

Definition at line 259 of file erhic/EventMC.h.

◆ SetN()

void erhic::EventMC::SetN ( int n )

inlinevirtual

Sets the unique identifier for this event.

Parameters

[in] n The identifying number, an integer

Definition at line 247 of file erhic/EventMC.h.

◆ SetNTracks()

void erhic::EventMC::SetNTracks ( int n )

inlinevirtual

Sets the track count for this event.

Parameters

[in] n The track count, an integer

Definition at line 251 of file erhic/EventMC.h.

◆ SetProcess()

void erhic::EventMC::SetProcess ( int code )

inlinevirtual

Sets the code describing the production process of this event.

Parameters

[in] code The identifying code, an integer

Definition at line 243 of file erhic/EventMC.h.

Member Data Documentation

◆ ELeptonInNucl

Double32_t erhic::EventMC::ELeptonInNucl

protected

Incident lepton energy in the nuclear rest frame.

Definition at line 206 of file erhic/EventMC.h.

◆ ELeptonOutNucl

Double32_t erhic::EventMC::ELeptonOutNucl

protected

Scattered lepton energy in the nuclear rest frame.

Definition at line 208 of file erhic/EventMC.h.

◆ nTracks

Int_t erhic::EventMC::nTracks

protected

Number of Particles in the event (intermediate + final)

Definition at line 205 of file erhic/EventMC.h.

◆ number

Int_t erhic::EventMC::number

protected

Event number.

Definition at line 203 of file erhic/EventMC.h.

◆ particles

TClonesArray erhic::EventMC::particles

protected

Particle list.

Definition at line 210 of file erhic/EventMC.h.

◆ process

Int_t erhic::EventMC::process

protected

PYTHIA code for the physics process producing the event.

Definition at line 204 of file erhic/EventMC.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EventMC()

◆ ~EventMC()

Member Function Documentation

◆ AddLast()

◆ BeamHadron()

◆ BeamLepton()

◆ Clear()

◆ ExchangeBoson()

◆ FinalState()

◆ FinalStateCharge()

◆ FinalStateMomentum()

◆ GetN()

◆ GetNTracks()

◆ GetProcess()

◆ GetTrack() [1/2]

◆ GetTrack() [2/2]

◆ GetTracks()

◆ HadronicFinalState()

◆ HadronicFinalStateMomentum()

◆ Parse()

◆ RequiresEaParticleFields()

◆ Reset()

◆ ScatteredLepton()

◆ SetELeptonInNuclearFrame()

◆ SetEScatteredInNuclearFrame()

◆ SetN()

◆ SetNTracks()

◆ SetProcess()

Member Data Documentation

◆ ELeptonInNucl

◆ ELeptonOutNucl

◆ nTracks

◆ number

◆ particles

◆ process
